What Is Important When Designing a Mitsubishi Heat Pump Heating System for an Adirondack Home?

Quick answer: a Mitsubishi heat pump heating system is only as good as its design. Six things decide whether it holds 70°F at -10°F or leaves you cold — the size of the space and its heat loss, insulation and airtightness, the local design temperature, the indoor and outdoor equipment chosen, where the outdoor unit sits, and how the system will be maintained. Get those right and Hyper-Heat equipment carries an Adirondack home without a furnace behind it. This guide walks through each factor and then answers the questions we hear most: cold-climate technology, DIY, savings, solar, backup and what to do when a system stops in extreme cold.

The six design factors

1. Size of the space — and its real heat loss

Square footage is the starting point, not the answer. The required heating capacity comes from a room-by-room load calculation that accounts for ceiling height, window area and orientation, construction type, air leakage and the outdoor design temperature. Two 1,800-square-foot houses in Ticonderoga — a 1900 farmhouse and a 2015 build — can need very different systems. Read why load calculations matter.

2. Insulation and airtightness

Good insulation and air sealing reduce the heating load, which means smaller equipment, lower running cost and better comfort. In older North Country homes the attic hatch, top plates and rim joists are the usual leaks; a few hundred dollars of attic air sealing can shave a full size off the system. We look at this at every estimate.

3. Climate and design temperature

A system has to be designed for the lowest temperatures the house will actually see, not a statewide average. Ticonderoga's design temperature is about -10°F; Lake Placid, Saranac Lake and Keene regularly see -20°F to -30°F. Mitsubishi H2i equipment delivers 100% of rated capacity at 5°F and operates to -13°F; for the coldest towns we specify H2i Plus / FS-series units that run to -22°F, and we size them at the design temperature rather than the nominal rating.

4. Equipment and system components

The design has to match indoor styles to rooms and the outdoor unit to the combined load. Options: wall-mounted (MSZ-FS, GL), floor-mounted (MFZ), ceiling cassettes (MLZ, SLZ), and ducted units (SEZ, PEAD, SVZ) with short duct runs; controls from a remote to the MHK2 thermostat to the Mitsubishi Comfort app; and a single-zone or MXZ multi-zone outdoor unit. On ducted systems, duct sizing and static pressure are part of the design.

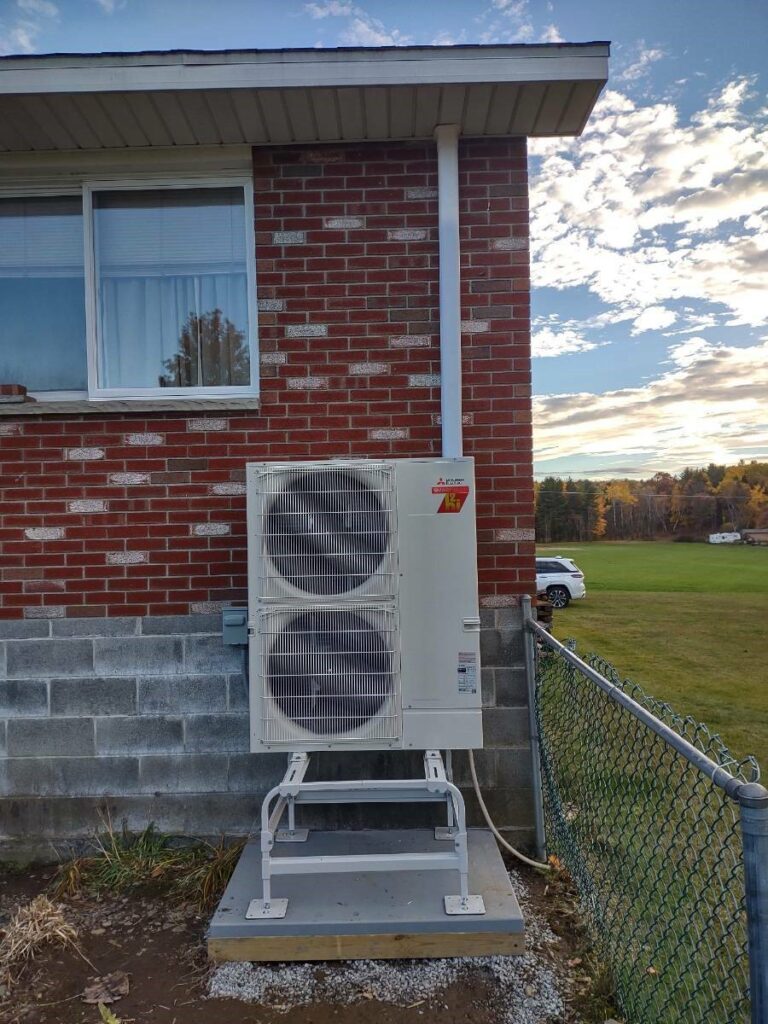

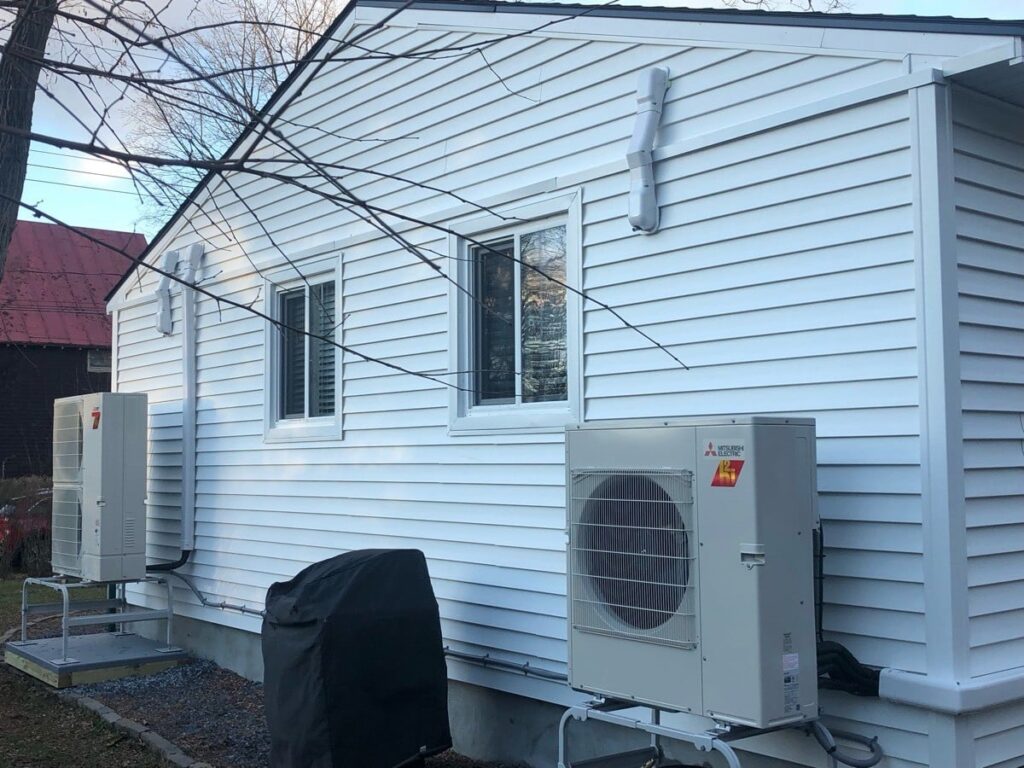

5. Location of the outdoor unit

The outdoor unit has to breathe and drain. It belongs on a stand or wall brackets above the snow line, with 18–24 inches of clearance, away from roof slides and drifting, with a path for defrost water that will not freeze into a block under it. Wind exposure, line-set length to the indoor units and noise near bedroom windows all factor in. Most storm-time service calls on other installers' systems trace to a unit set on the ground.

6. Maintenance access

Filters need to be reachable, the outdoor coil needs to be rinsable, and the condensate path needs to be serviceable. A cassette in a cathedral ceiling or an outdoor unit behind a deck lattice makes every future visit harder. Design for the technician who will visit in year nine.

Talk to a heating and cooling professional who works with Mitsubishi equipment every day; the design is the part a homeowner cannot buy off a shelf. Our installation page explains our process. A seventh factor that runs through all six is honesty about the building: a design that assumes the attic is insulated when it is not, or that the panel has room when it does not, fails on paper before the first unit is hung. We would rather tell you the house needs air sealing or a sub-panel at the estimate than discover it in January.

Design notes by Adirondack home type

The 1800s village house

Ticonderoga, Crown Point and Whitehall are full of them: two stories, plaster walls, radiators or baseboard, no ducts, a steep roof that sheds snow. The design is usually one or two multi-zone outdoor units on the side of the house away from the roof slide, FS wall units in the main rooms, floor units under the tall windows in the parlor, and either small wall units or a ducted unit in the attic for the upstairs bedrooms. Line sets run through closets and are finished in line-hide. Attic air sealing first is almost always worth it.

The lakeside camp

Open plan, a loft, lots of glass facing the water, often electric baseboard. One well-placed Hyper-Heat wall unit frequently carries the great room; a second small head covers the bedroom wing. Freeze protection through the app is part of the design, and the outdoor unit goes on the landward side where it is sheltered from wind off the lake.

The 1970s–1990s ranch or split-level

Often propane or oil forced air with existing ducts. Here the right design may be a ducted SVZ air handler replacing the furnace and using the existing ducts, after we test them for leakage and static pressure, plus a wall unit for the bonus room the ducts never reached.

New construction

The easiest case: we design with the builder, place line sets inside the walls before drywall, size for the real insulation values, and often use concealed ducted units for a conventional look with Hyper-Heat performance. New homes of this size are all-electric by state policy in 2026, so the design starts from a heat pump.

Ducted design considerations

When a design includes a ducted unit, three more things matter: static pressure (Mitsubishi ducted units are rated for specific external static; long, restrictive duct runs starve airflow), duct leakage (old ducts in an attic can lose a quarter of the air before it reaches the room — we seal and test), and return air (every room served needs a path back to the unit, or doors closed at night will unbalance the system). Filter access and condensate routing are planned up front. Done right, a ducted zone is invisible and even; done wrong, it is the loudest, least efficient part of the house.

Designing the controls

Controls are part of the design, not an afterthought. For each zone we decide between the handheld remote, an MHK2 wall thermostat (for rooms where the household wants a conventional thermostat on the wall) and app control through a Wi-Fi adapter, and we think about who will operate it: a seasonal camp gets app control and freeze alerts; a rental gets a locked wall thermostat with a sensible range; a family home gets schedules per bedroom. On ducted zones the thermostat location is chosen for a representative temperature, away from supply registers and sun. See controllers.

Mitsubishi cold-climate heat pump technology

Mitsubishi's cold-climate line — Hyper-Heating INVERTER, or H2i — is engineered to keep heating when standard heat pumps have faded. Larger outdoor coils capture more heat from cold air; a flash-injection compressor circuit keeps discharge temperatures up; refined defrost logic clears frost quickly and returns to heating. The system does not rely on built-in resistance strips to make its numbers: it holds 100% of rated capacity at 5°F on refrigeration alone, continues to -13°F, and H2i Plus models continue to -22°F. That is why these systems serve as primary heat in Essex County homes, not as a supplement to a furnace. Details on cold-climate heat pumps.

Advances in Mitsubishi heat pump technology

• Inverter technology. A variable-speed compressor matches output to the load instead of cycling, cutting energy use and wear.
• Zone control. Each indoor unit is a zone with its own setpoint; one MXZ outdoor unit runs up to eight.
• Improved defrost. Smarter sensing means fewer and shorter defrost cycles and more heating time in icy weather.
• Enhanced airflow. The 3D i-see sensor on FS units scans the room and aims air at people and cold spots; vane control on every unit.
• Smart integration. The Mitsubishi Comfort app (kumo cloud) puts every zone on your phone with schedules and alerts.
• R-454B refrigerant. Equipment built from 2025 uses a lower-GWP refrigerant in place of R-410A, with the same cold-climate performance.

Our technology explainer covers each in depth.

How important is the correct equipment and design?

It is everything. Specifically:

• Sizing. Too small, and the system runs flat out and still loses ground on the coldest nights. Too large, and it short-cycles, dehumidifies poorly in summer and wears out early. Both waste energy.
• Installation. Line sets must be correctly sized, nitrogen-purged, deep-vacuumed and charged by weight. Skip any step and you get reduced capacity, higher bills and eventually a compressor failure the warranty may not cover.
• Maintenance. Clean filters, clear coils and an annual check keep the system at its rated efficiency for 15–20 years.
• Integration. Controls, any ductwork and any backup heat have to work as one system, with clear switchover logic if backup exists.

Can I install my own Mitsubishi heat pump?

We get asked, and the honest answer is that it is a bad idea even for a capable homeowner, for four reasons:

1. Safety. High-voltage wiring, pressurized refrigerant — and since 2025, A2L refrigerant that requires specific tools and handling. Mistakes risk fire, shock and injury.
2. Code compliance. Installations must meet electrical and mechanical codes and the manufacturer's specifications; a licensed professional knows them and pulls the permits.
3. Sizing and design. The load calculation, line-set sizing, vacuum and charge are where DIY installs fail — usually quietly, as a system that "works" but delivers 70% of its rating and dies in year six.
4. Warranty. Mitsubishi's extended 12-year parts warranty applies only to installs by a Diamond Contractor; a DIY install can void coverage entirely. The "savings" evaporate with the first compressor.

Read why expertise matters for the long version.

How much can I save in an extreme-cold climate?

It depends on the size of the space, the efficiency of the system and the quality of the install, the cost of energy in your area, and how you use it — setpoints and schedules. As a rule, a cold-climate heat pump delivers two and a half to three units of heat per unit of electricity; oil, propane and wood deliver less than one, and baseboard exactly one. Against baseboard the saving is large and predictable; against oil and propane it moves with fuel prices, which is exactly why those fuels are hard to budget. The savings calculator models your home with current prices in two minutes, and our operating-cost article shows the math.

Do Mitsubishi heat pumps provide heating and air conditioning?

Yes — every Mitsubishi heat pump is a dual system. The advantages of one system for both: energy efficiency in both seasons; versatility; lower total cost than separate heating and cooling equipment; no fossil fuel; quiet operation as low as 19 dB; and Mitsubishi's reputation for reliability. For the Adirondacks it means real, dehumidified air conditioning in a house that never had ducts. See Mitsubishi air conditioning.

How important is regular maintenance?

Important enough that we build it into the Adirondack Shield Elite Care Plan. Regular maintenance improves efficiency (dirty filters and coils are the fastest way to lose capacity), extends lifespan by catching small problems early, improves comfort, enhances safety by spotting electrical or refrigerant issues, and protects the warranty. Schedule a professional visit at least once a year; rinse filters yourself monthly in heavy use. Our maintenance pricing is published.

How many people use Mitsubishi heat pumps in cold climates?

There is no precise count, but the trend is unmistakable: cold-climate heat pumps are now standard equipment across Maine, Vermont, upstate New York, Quebec and Scandinavia, driven by efficiency, incentives and performance that finally matches the winters. In our own territory we have Mitsubishi systems running as primary heat in Newcomb, Keene, Lake Placid and across Essex County. The key is choosing equipment designed for cold climates and sizing it correctly; a supplementary heat source is a design choice, not a requirement.

What do I do if my heat pump stops working in extreme cold?

1. Check the controls

   Is the unit in HEAT (not AUTO or COOL)? Is the setpoint above room temperature? Replace remote batteries if the unit is not responding.

2. Check the breaker

   Reset a tripped breaker once. If it trips again, stop and call.

3. Check the filters

   A badly clogged filter can cause a unit to shut down. Rinse and reinstall.

4. Check the outdoor unit

   Clear snow and ice from around it so it can breathe. Steam during defrost is normal; solid ice encasing the cabinet is not.

5. Call a professional

   If those steps do not fix it, call (518) 812-1958 — answered around the clock. Our no-heat page and troubleshooter can help while you wait.

How long will a cold-climate heat pump stay off in extreme cold?

A correctly designed Mitsubishi cold-climate system should not shut off for cold in our region at all: it operates to -13°F, or -22°F on H2i Plus models, which is below the design temperature of every town we serve. What you will see on the coldest nights is continuous running and periodic defrost pauses of a few minutes, not a shutdown. If a home does have a supplementary system, a switchover temperature can be set so backup assists during the rare stretch below the equipment's limit; the length of any such period depends on the weather, not the heat pump. If your system is going off in ordinary winter weather, it is undersized or faulty — call us.

Will an unmaintained Mitsubishi heat pump work?

For a while, and then worse and worse. An unmaintained system keeps running with clogged filters and dirty coils, but capacity falls, bills rise, the compressor works harder, and small issues — a slow leak, a failing capacitor — grow into a failure in the worst week of winter. The benefits of maintenance are the mirror image: efficiency, lifespan, comfort, safety and warranty protection. Once a year with a professional, filters monthly yourself.

Can solar panels power a Mitsubishi heat pump?

Yes, if the solar system is sized for it. Solar panels generate electricity that can run the heat pump and the rest of the house, cutting reliance on the grid and the electric bill. The catch is seasonality: a heat pump's biggest draw is in December and January, when Adirondack solar production is lowest, so most solar-plus-heat-pump homes are grid-tied and net-metered — overproducing in summer and drawing in winter. The size of the array depends on the heat pump's annual kWh, the rest of the home's load and the site. We will share the heat pump's modeled consumption with your solar installer so the array is sized to real numbers.

If I have solar and a heat pump, do I need anything else?

Possibly not, but it depends on four things: whether the array's annual production covers the heat pump plus everything else; the climate and how much production drops in winter; your usage pattern, since heat pumps run hardest at night in January when the panels are idle; and whether you want backup for outages — a battery or a generator — since a grid-tied solar system shuts down when the grid does. A comprehensive energy analysis, from your solar installer with our heat pump numbers, settles it. For many North Country homes the answer is grid-tied solar, a heat pump, and a wood stove or generator for the once-a-winter multi-day outage.

Putting it together

A well-designed Mitsubishi system in the Adirondacks looks like this: a load calculation at the design temperature; H2i or H2i Plus equipment sized to it; indoor styles matched to rooms; outdoor units on stands with clearance and drainage; electrical confirmed; the install done to specification by a Diamond Contractor ELITE so the 12-year parts warranty applies; controls set up; and a maintenance plan. Every one of those is a design decision, and every one is made at the free estimate. For a worked example read our Ticonderoga case study.
