Mitsubishi Hyper-Heat Outdoor Units for Single & Multi-Zone Systems
The outdoor unit is the engine of the system — it holds the inverter compressor and the coil that pulls heat out of winter air. We install two families: MUZ single-zone units that pair with one indoor unit, and MXZ Smart Multi units that run two to eight indoor units of any style. Both are available with Hyper-Heating INVERTER® (H2i®), which delivers 100% of rated capacity at 5°F, operates to -13°F, and to -22°F on H2i Plus / FS-series models. We mount every one above the snow line with a drain pan heater and surge protection for Ticonderoga, Lake Placid and Champlain Valley winters.
- Mitsubishi Diamond Contractor ELITE
- 12-year parts & labor warranty
- 180-Day Comfort Guarantee
- Veteran-owned · Ticonderoga, NY

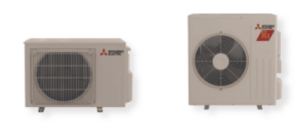

MUZ-FS and MUZ-GL: one outdoor unit, one room
A single-zone outdoor unit connects to exactly one indoor unit through a refrigerant line and a control wire. It is the simplest, most efficient Mitsubishi system there is, and the right answer for a camp, an addition, a bedroom over the garage or a first step off propane.
- MUZ-FS (H2i Plus) — pairs with the MSZ-FS Deluxe wall unit. 100% capacity at 5°F, operates to -22°F, efficiency up to the low 30s SEER2. Our standard single-zone recommendation anywhere in the North Country.
- MUZ-GL — pairs with the MSZ-GL wall unit; available in standard and Hyper-Heat versions. The value choice for a three-season camp or a room that only needs shoulder-season heat and summer cooling.
- SUZ universal outdoor units — drive a single floor, ceiling or ducted indoor unit, with H2i options.
Capacities run 6,000 to 36,000 BTU/h. All single-zone Mitsubishi systems are ENERGY STAR certified.

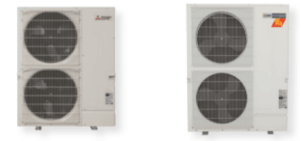

MXZ Smart Multi: up to eight indoor units on one outdoor unit
A multi-zone outdoor unit has multiple refrigerant ports — or feeds a branch box — so two to eight indoor units of any mix run from one compressor. Each indoor unit asks for the capacity its room needs and the inverter compressor matches the total. This is the backbone of whole-home conversions in homes with no ducts, and it keeps the outside of the house to one or two units instead of five.
- MXZ-SM Smart Multi (H2i) — the current multi-zone H2i line, available in capacities to run three, four, five or more zones. Supports wall, floor, cassette and ducted indoor units together.
- MXZ-C series (H2i) — two- to eight-zone Hyper-Heat units used on many of our existing installs.
- Branch boxes let one large outdoor unit serve more zones than its ports; the Ticonderoga whole-home project on our whole-home page used a 42,000 BTU and a 30,000 BTU outdoor unit with a five-port branch box for seven heads.
Sizing a multi-zone unit is about the sum of the zones at design temperature, not the sum of the indoor unit labels — the load calculation decides.
Mitsubishi outdoor unit quick reference
| Family | Zones | Capacity range | Cold-climate rating | Typical use |
|---|---|---|---|---|
| MUZ-FS | 1 | 6,000–18,000 BTU/h | H2i Plus: 100% at 5°F, operates to -22°F | Premium single room, camps, additions |
| MUZ-GL | 1 | 6,000–24,000 BTU/h | Standard or H2i depending on model | Value single room, three-season spaces |
| SUZ universal | 1 | 9,000–36,000 BTU/h | H2i options | Single ducted, cassette or floor unit |
| MXZ-SM Smart Multi | 2–8 | Up to about 48,000 BTU/h | H2i: 100% at 5°F, operates to -13°F | Whole-home ductless and hybrid |
| MXZ-C series | 2–8 | 20,000–48,000 BTU/h | H2i: 100% at 5°F, operates to -13°F | Multi-zone homes |
| PUZ / P-Series | 1 (larger) | Up to 42,000 BTU/h+ | H2i options | Air handlers, light commercial |
Ranges are typical for current Mitsubishi Electric lines and change by model year; 2025+ units use R-454B refrigerant. We select the exact model per system at your free estimate.
Where and how we set the outdoor unit
An outdoor unit on the ground in Essex County spends January buried in snow and March sitting in meltwater. Every one of ours goes on a wall bracket or a raised stand over a crushed-stone pad, with:
- Height above the snow line so the coil breathes and drifting snow never blocks it.
- A drain pan heater so defrost water leaves the pan instead of freezing into a block of ice that stops the fan.
- Surge protection on the inverter board, because North Country power blips are routine.
- Clearance from roof drip lines, dryer vents and walkways, and a spot that keeps the sound away from bedroom windows and the deck.
- A snow or wind baffle where the unit faces prevailing weather on exposed lakefront sites.
Mitsubishi outdoor units are quiet — about the level of a quiet conversation at full speed, and far less at the part-load speeds they run most of the time — and they ramp up gradually instead of slamming on.
Defrost, ice and what's normal in January
Below about 40°F in humid air, frost builds on the outdoor coil. The unit periodically runs a short reverse-cycle defrost: the fan stops, the coil warms, steam may rise off it, meltwater drips from the pan, and then it goes back to heating. On H2i units these cycles are spaced so you get hours of continuous heat between them. A thin frost coat is normal; a solid block of ice under the unit is not, and that's what the pan heater and stand prevent. If your unit ever stops with ice packed around the fan, call us — and see our troubleshooter for what you can check first.
Should you use one multi-zone unit or several single-zones?
Both approaches work and we design both. Several single-zone units give each room its own compressor — maximum efficiency per zone and redundancy if one needs service — but more hardware on the outside of the house and more line sets. One multi-zone unit keeps the exterior clean and is usually less expensive for three or more zones, with the trade-off that the whole system shares one compressor. A common Ticonderoga design is a single-zone FS for the main living space plus a Smart Multi for the bedrooms. We'll show you both layouts and prices at the estimate.
Questions about Mitsubishi outdoor units
How many indoor units can one outdoor unit run?
A single-zone MUZ runs one. An MXZ Smart Multi runs two to eight indoor units of any style, and a branch box can extend a large unit to more zones than it has ports.
What temperature do Mitsubishi outdoor units work down to?
H2i units deliver 100% rated capacity at 5°F and operate to -13°F. H2i Plus and FS-series units operate to -22°F. Standard (non-H2i) units lose capacity in the cold and are only specified for three-season spaces.
How loud is the outdoor unit?
About the level of a quiet conversation at full speed, and less most of the time because the inverter runs at part load. It ramps up gradually rather than slamming on. We also choose a location away from bedroom windows and the deck.
Does the outdoor unit need a cover in winter?
No. It needs to breathe. A top-only snow hood or baffle on exposed sites is fine; a full cover would block the coil. The stand and drain pan heater handle snow and ice.
Can the outdoor unit sit on the ground?
We don't install them that way in the North Country. Ground-level units get buried in snow and sit in meltwater. Every unit goes on a wall bracket or a raised stand over a gravel pad.
Can I add indoor units to my outdoor unit later?
If it's a multi-zone unit with spare ports and capacity, yes. Tell us at design time if you plan to finish a basement or add a sunroom so we size for it.
What refrigerant do new units use?
Mitsubishi outdoor units produced from 2025 on use R-454B, a lower-global-warming-potential refrigerant that replaced R-410A. Ratings are unchanged and our technicians are certified for it.
